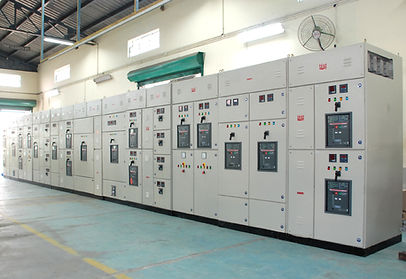

PCC - LT Panel


 1   The PCC Panels are used to distribute the Power through ACBs, MCCBs & SDFs.

 2   The PCC Panels Can be supplied with double bus bar system with feeders tapped from either bus or both.

 3   The PCC Panel has an arrangement for receiving/distributing power through Power Cable / Bus Duct.

 4   The PCC Panels Can be supplied with Modular design extensible at both sides.

 5   Type Tested as per IS- 8623 and IEC 61439 –1&2

 6   Operational Voltage - 415 V, AC

 7   Rated Insulation Voltage N- 1000 V, AC

 8   Operational Current -Up To 6300 A

 9   Degree of Protection - IP –42 / IP –54 / IP -55 (Indoor & Outdoor)

10  Short-circuit rating 50 / 65 kA.

11  Forms Separation - 4a,4b

12  Configuration - Fixed/Drawout

13  Complies with CEIG & CEA Regulations
